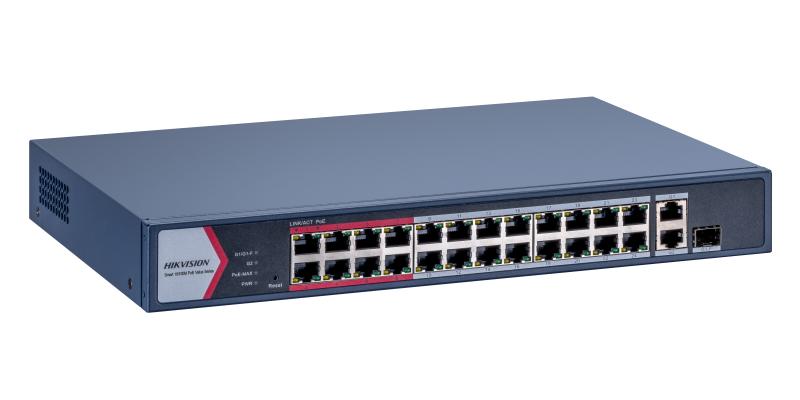

Hikvision – 24 Port Fast Ethernet Smart POE Switch (DS-3E1326P-EI/M)
The Hikvision 24-Port Fast Ethernet Smart PoE Switch (DS-3E1326P-EI/M) is a robust and cost-effective Layer 2 smart switch built for powering and managing larger IP surveillance and access control systems. It offers 24 × 10/100 Mbps PoE ports compliant with IEEE 802.3af/at, supporting up to 30W per port with a total PoE budget of 225W.
The switch also includes 2 × 100 Mbps uplink ports for seamless integration with your router, NVR, or core switch. Key smart features include AI extend mode for long-distance PoE (up to 250 meters), port isolation, loop prevention, and 6KV surge protection. The plug-and-play design and fanless metal enclosure ensure easy setup, durability, and quiet performance in professional environments.
Key Features
-
24 × 10/100 Mbps PoE ports
-
2 × 100 Mbps uplink ports
-
IEEE 802.3af/at support (up to 30W per port)
-
Total PoE power budget: 225W
-
AI Extend Mode: up to 250m PoE transmission (for long-range IP cameras)
-
Port isolation and loop prevention for enhanced network security
-
6KV surge protection on all ports
-
Plug-and-play deployment with auto-sensing ports
-
Fanless metal casing for silent and reliable operation
-
Ideal for medium to large IP CCTV systems, VoIP, and access control networks
