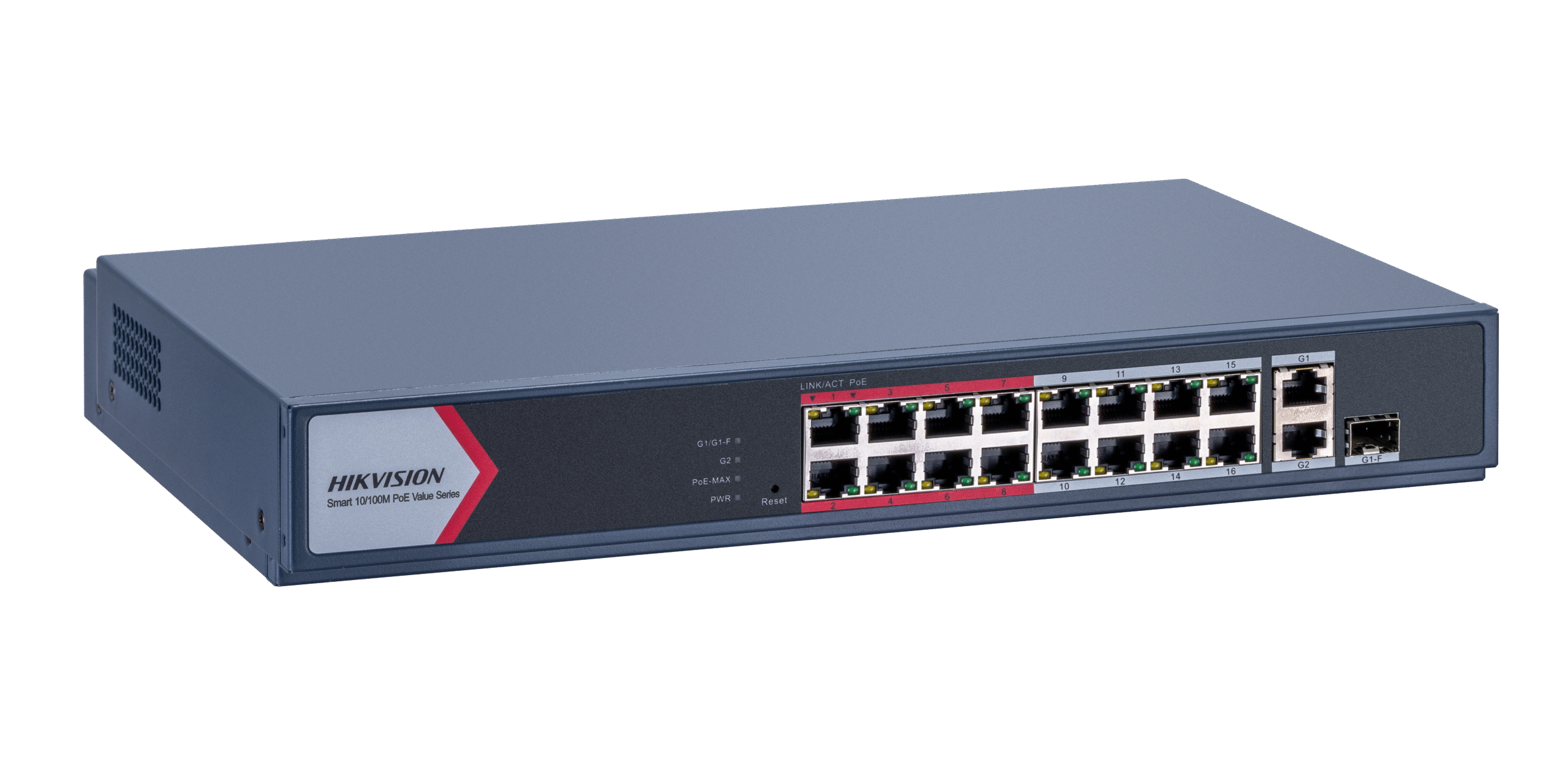

Hikvision – 16 Port Fast Ethernet Smart POE Switch (DS-3E1318P-EI/M)

The Hikvision 16-Port Fast Ethernet Smart PoE Switch (DS-3E1318P-EI/M) is a Layer 2 smart switch engineered for medium-scale video surveillance and IP device networks. It includes 16 × 10/100 Mbps PoE ports supporting IEEE 802.3af/at, offering up to 30W per port and a total PoE power budget of 135W—ideal for powering IP cameras, VoIP phones, and wireless access points.

Additionally, it features 2 × 100 Mbps uplink ports for smooth connection to NVRs or routers. Smart features like AI-powered extend mode (up to 250m), port isolation, and surge protection help ensure system security, stability, and efficient power use. The plug-and-play setup and durable fanless metal enclosure make it perfect for quiet indoor installations.

Key Features

• 16 × 10/100 Mbps PoE ports

• 2 × 100 Mbps uplink ports

• Supports IEEE 802.3af/at (up to 30W per port)

• Total PoE power budget: 135W

• AI Extend mode: up to 250m PoE transmission distance

• Port isolation, loop prevention, and auto recovery

• 6KV surge protection on all ports

• Plug-and-play setup, no configuration needed

• Fanless metal casing for silent operation

• Suitable for CCTV systems, wireless deployments, and small business networks
